Powerful. Smart. Enduring. Eco energy.

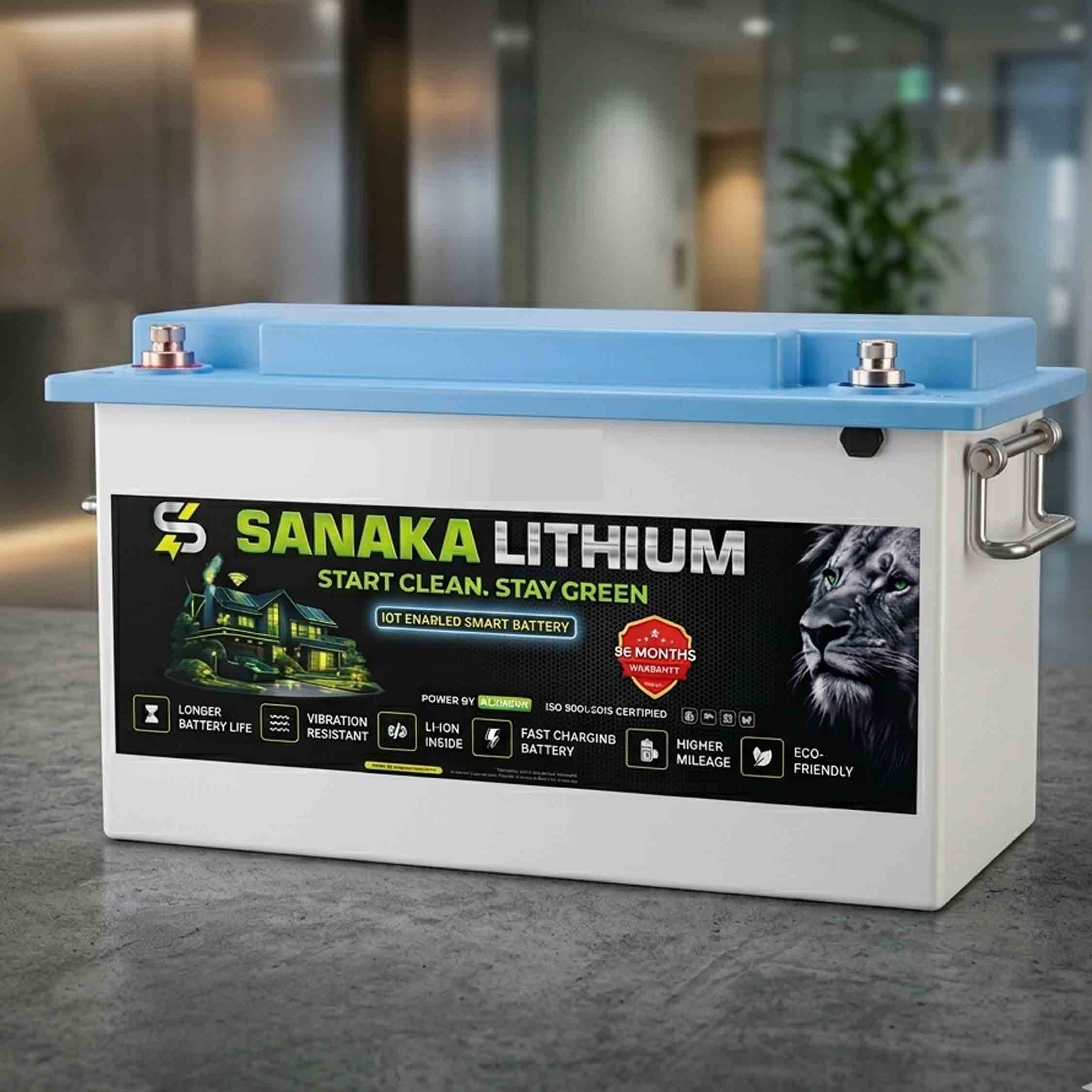

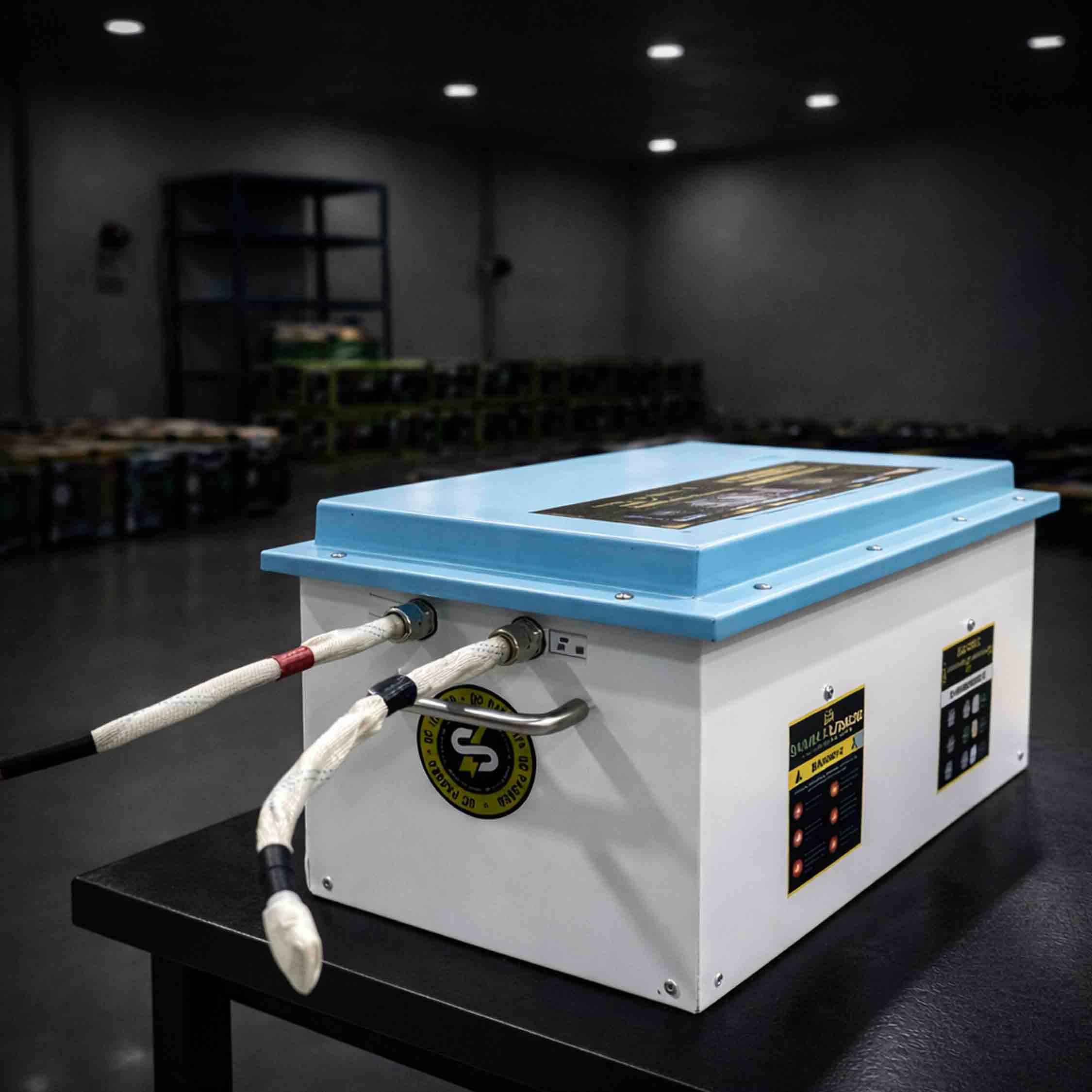

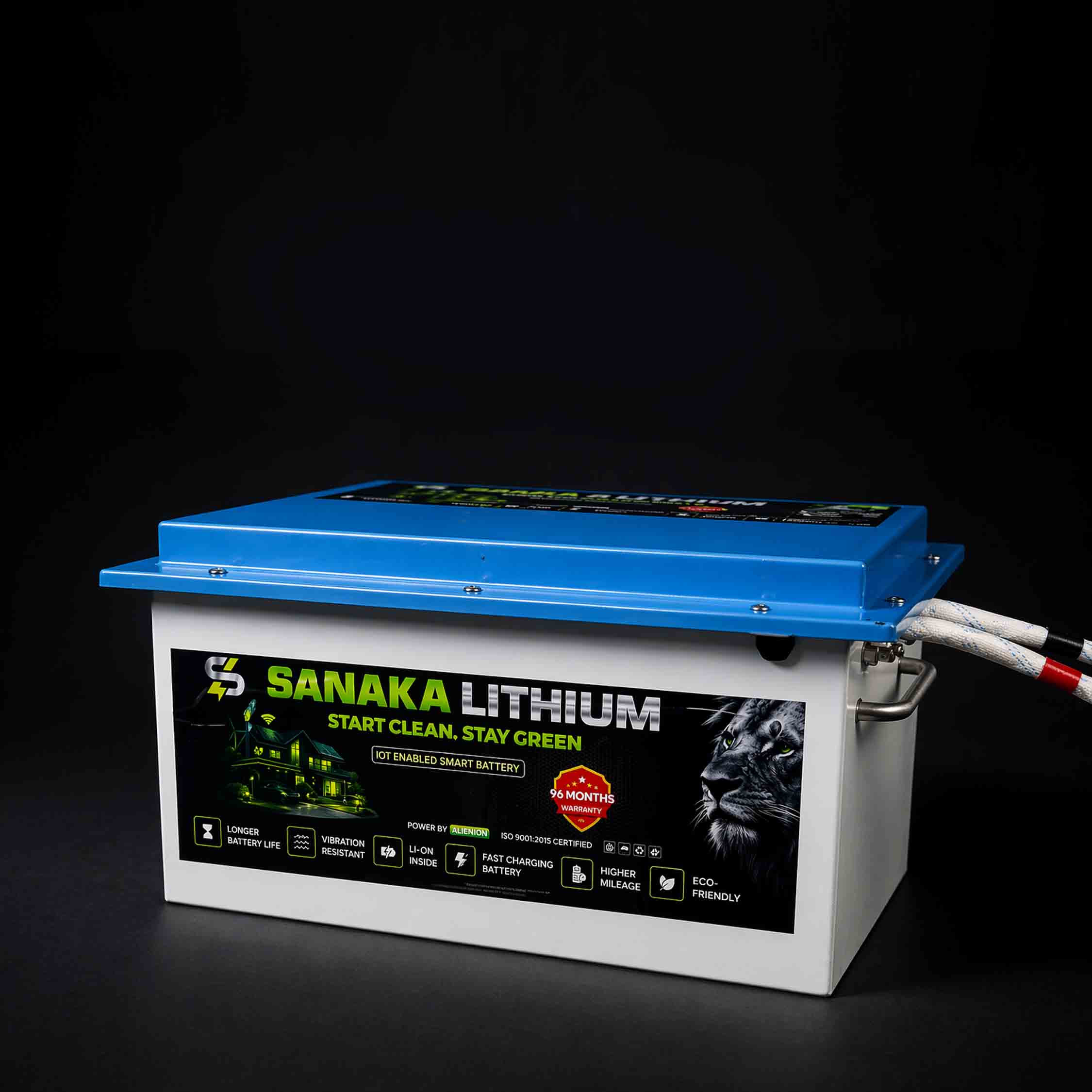

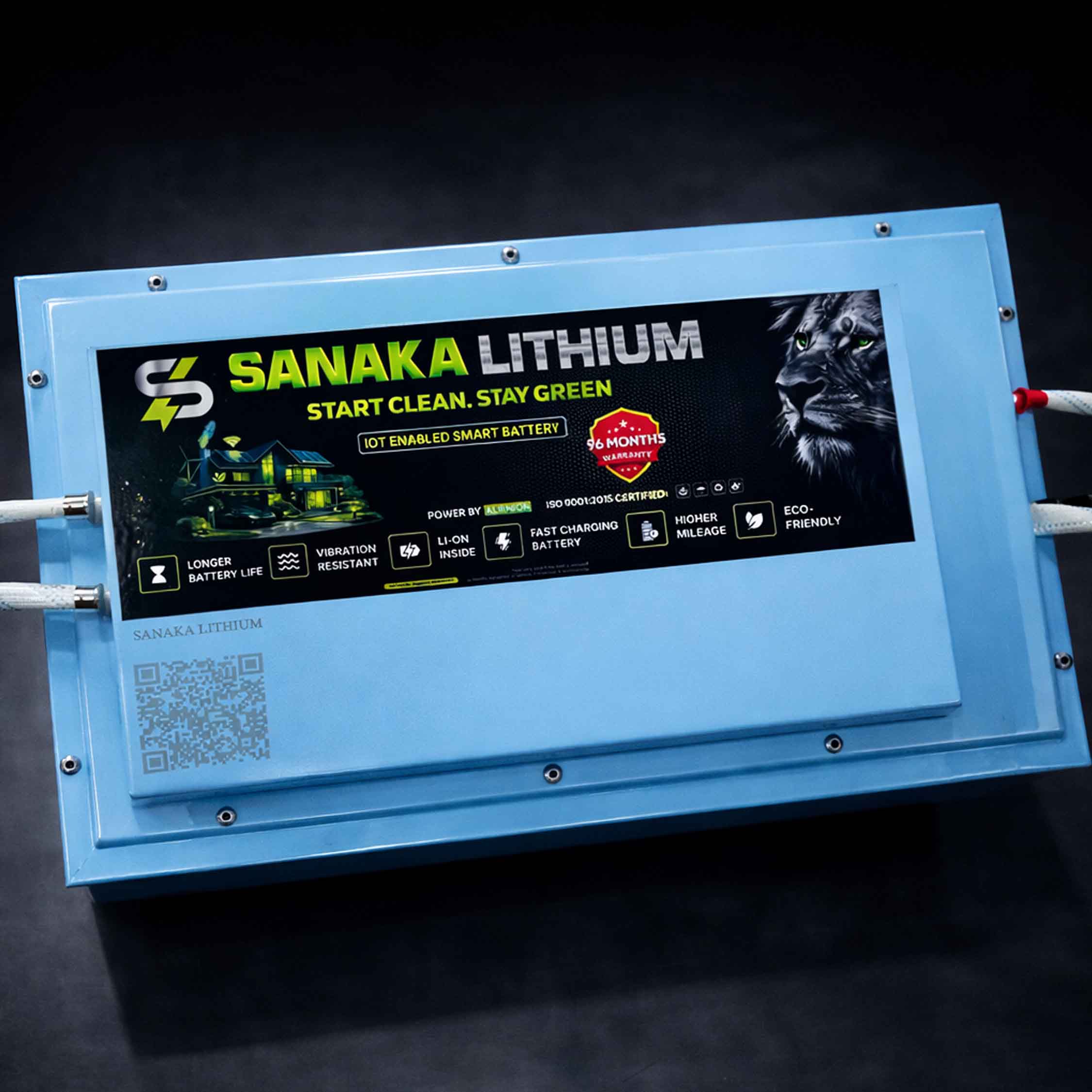

The 12.8 V 210 Ah LFP battery pack is designed for dependable backup and inverter applications, combining 2.688 kWh energy, 4S architecture, and stable low-voltage output for reliable everyday power storage and long service life.
2.688 kWh
14 V
20 kg Approx
LFP
4S
| Model Number | ATPL/MDL/DGN/04 |
| Type of Cell | LFP |
| Cell Architected | 4S |
| Energy (25±2°C) | 2.688 kWh |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 210 Ah |
| Maximum Voltage | 14 V |
| Working Voltage Range | 10.6 V - 14.2 V |
| Discharge Cut-off Voltage | 10.6 V |
| Standard Discharge Current | 70 A |
| Max. Discharge Current (10Sec) | 100 A |
| Temperature Protection | YES |
| Over Charging | YES |
| Deep Discharging | YES |
| Short Circuit | YES |
| Over Load Protection | YES |
| Standard Charging Current | 20 A |
| Rapid Charge Current | 30 A |
| Charging Method | CC/CV (3 Stage) |
| Working Temp. Range (Charging & Discharging) | 20°C≤T≤55°C |
| Internal Resistance | Max. 4 mΩ |
| Cycle | Max. 4000 |
| BMS Type | Smart BMS |
| Communication (CAN/USB/BLUETOOTH) | Available on Demand |
| Battery Display | YES |
| Weight | 20 kg Approx. |
| Dimension (LxWxH) | 380 x 250 x 200 MM |
