Powerful. Smart. Enduring. Eco energy.

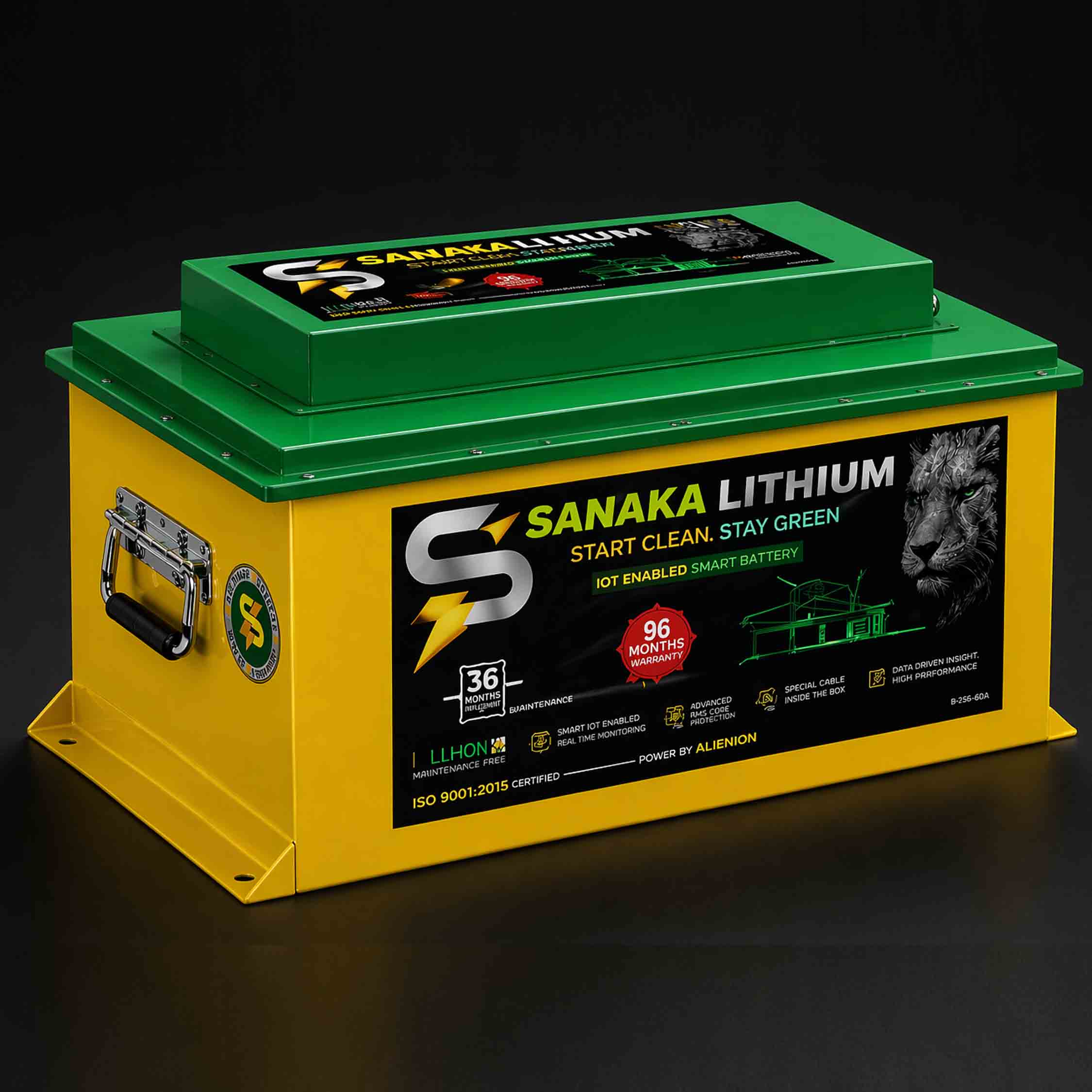

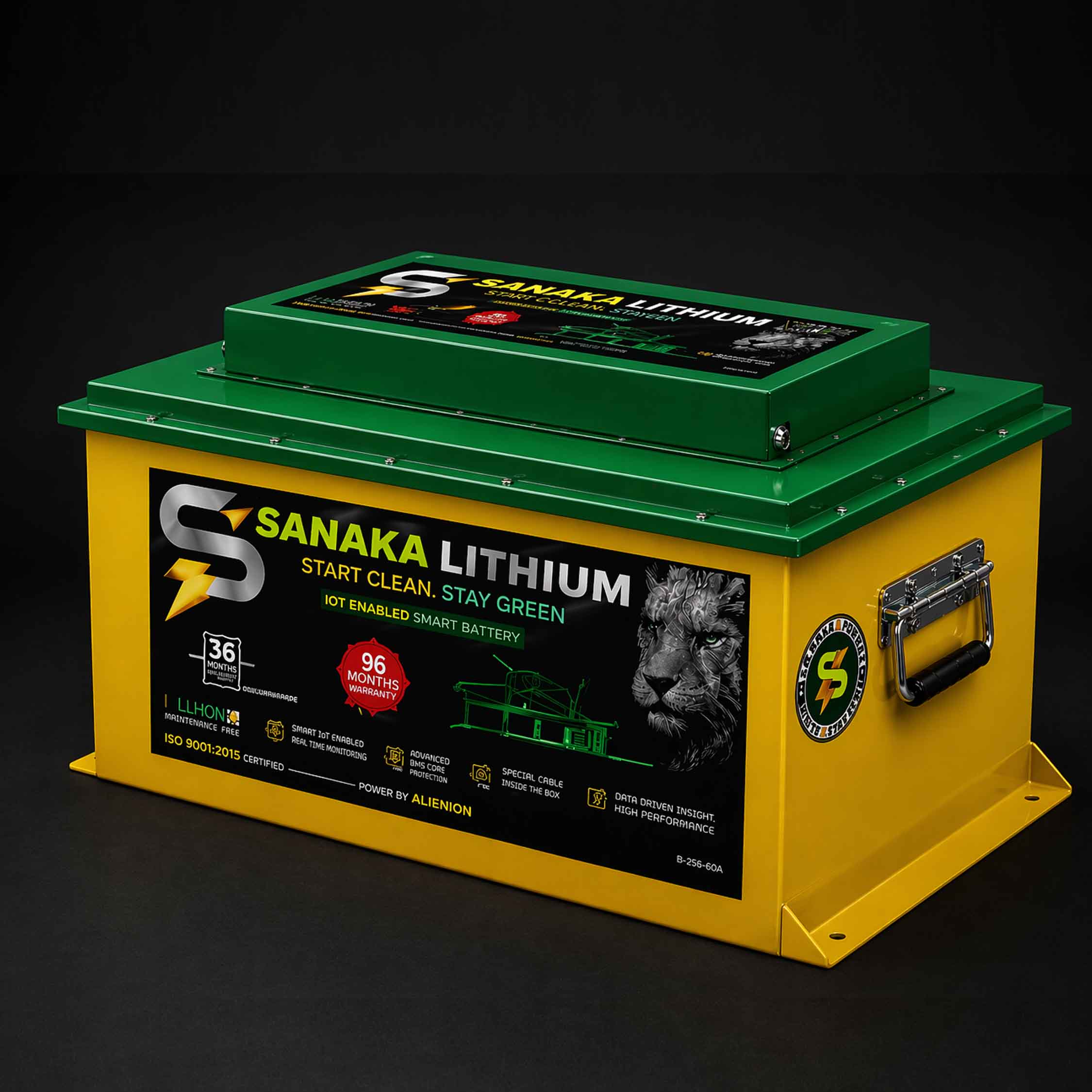

The 64 V 150 Ah LFP battery pack is built for high-capacity electric mobility and loader applications, delivering 9.600 kWh energy, 20S cell architecture, and strong high-voltage performance for demanding heavy-duty operation.
9.600 kWh
70 V
68 kg Approx
LFP
20S
| Model Number | ATPL/MDL/DGN/05 |
| Type of Cell | LFP |
| Cell Architected | 20S |
| Energy (25±2°C) | 9.600 kWh |
| Nominal Voltage | 64 V |
| Nominal Capacity | 150 Ah |
| Maximum Voltage | 70 V |
| Working Voltage Range | 53 V - 70 V |
| Discharge Cut-off Voltage | 53 V |
| Standard Discharge Current | 90 A |
| Max. Discharge Current (10Sec) | 150 A |
| Temperature Protection | YES |
| Over Charging | YES |
| Deep Discharging | YES |
| Short Circuit | YES |
| Over Load Protection | YES |
| Standard Charging Current | 30 A |
| Rapid Charge Current | 40 A |
| Charging Method | CC/CV (3 Stage) |
| Working Temp. Range (Charging & Discharging) | 20°C≤T≤55°C |
| Internal Resistance | Max. 9 mΩ |
| Cycle | Max. 6000 |
| BMS Type | Smart BMS |
| Communication (CAN/USB/BLUETOOTH) | Available on Demand |
| Battery Display | YES |
| Weight | 68 kg Approx. |
| Dimension (LxWxH) | 471 x 381 x 286 MM |
